MZ30G 76MM Thickness Backstopping Cam Bearing Clutch

Brand Name : SUMA

Model Number : MZ30G

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD95-USD139 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal

Delivery Time : 7-15 Days

Packaging Details : Carton Box / Wooden Box

Supply Ability : 1000PCS Per Month

Product Name : Cam Clutch Bearing MZ30G

Bearing Supported : YES

Material : Bearing Steel GCr15

Size : 30*100*70mm

Torque capacity : 735Nm

Warranty : 1 Year

Package : Carton Box / Wooden Box

Weight : 3.2Kg

Contact Now

MZ30G 76MM Thickness Backstopping Cam Bearing Clutch

Features

Types MZ-G suitable for backstop, or overrunning clutch applications. Outer race circumference ground finish.

Technical Datas

Item MZ30G
Material GCr15
Bore dia. 30 mm
Outer dia. 100 mm
Width 76 mm
Torque capacity 735 N.m
Weight 3.2 kg
Package Carton box, wooden box or as your requirements

Dimensions and Capacities

MZ30G 76MM Thickness Backstopping Cam Bearing Clutch

Model

 Torque Max.Overrunning Max. Drag
Capacity

Inner

Race

Outer

Race

 Indexing Torque
(N·m) (r/min) (cycle/min) (N·m)
MZ15G 186 2,200 900 150 0.2
MZ17G 215 2,000 800 150 0.2
MZ20G 323 1,900 700 150 0.29
MZ30G-22 735 1800 500 150 0.39
MZ30G-25
MZ30G
MZ35G 1,080 1,700 300 150 0.49
MZ45G-40 1620 1700 300 150 0.69
MZ45G
MZ60G-50 2110 1600 250 150 0.98
MZ60G-55
MZ60G
MZ70G-65 3040 1300 250 150 1.27
MZ70G
Bore size
A
C
B (h7)
F
E
K
PCD
D
S
H-M No.of
Tapped Holes
×Size ×Pitch
Weight
(kg)
Dia.
(H7)		 Keyway Chamfer
J
15 5×2.3 0.8 55 53 68 25 47 1.3 58 10 6-M5×0.8 1.3
17 5×2.3 0.8 63 61 75 28 52 1.3 64 10 6-M5×0.8 1.7
20 5×2.3 0.8 64 62 80 30 55 1.3 68 12 6-M6×1.0 1.9
22 8×3.3 1.0
70
68
100
45
75
1.3
88
16
6-M8×1.25
3.2
25 8×3.3 1.0
30 10×3.3 1.0
35 10×3.3 1.0 78 76 110 50 80 1.3 95 16 6-M8×1.25 4.4
40 12×3.3 1.3
87
85
125
60
95
1.3
110
16
8-M8×1.25
6.2
45 12×3.3 1.3
50 14×3.8 1.5
90
88
155
80
125
1.3
140
16
8-M8×1.25
9.5
55 16×4.3 1.5
60 18×4.4 1.5
65 18×4.4 1.8
105
103
175
95
145
1.3
162
16
8-M8×1.25
13.1
70 20×4.9 1.8

Notes:

1. T max = 2 × T KN

2. Inner race overruns

3. Outer race overruns
Keyway to DIN 6885.1

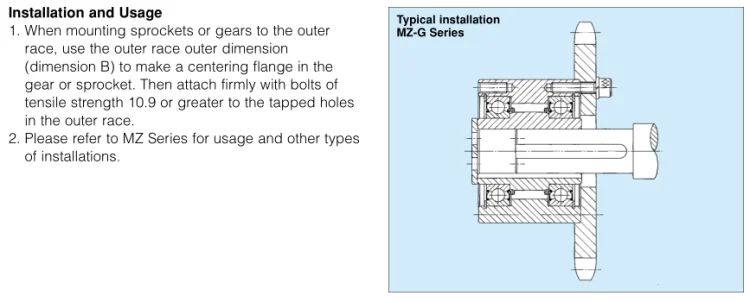

Mounting and Coupling

MZ30G 76MM Thickness Backstopping Cam Bearing Clutch

Pictures

MZ30G 76MM Thickness Backstopping Cam Bearing Clutch

MZ30G 76MM Thickness Backstopping Cam Bearing Clutch

MZ30G 76MM Thickness Backstopping Cam Bearing Clutch
